제품소개
Mechanical Drum
| DESIGN-A (Shaping Mechanical Drum) • BEAD RANGE SPEC : 13" ~ 34" • BEAD LOCK SECTION : 24 PCS • TURN UP & PUSHER : MECHANICAL FINGER |
DESIGN-B (Advance Cover type) • WIDTH ADJUST : SPACER TYPE • BEAD RANGE SPEC : 15" ~ 26" • BEAD LOCK SECTION : 24 PCS • SHOULDER SUPPORT : BLADDER or SEGMENT • TURN UP & PUSHER : MECHANICAL FINGER |
 |
| DESIGN-C (Turn Cover Plate type) |
1’st Building Drum
| DESIGN-A (Radial Expansion) • WIDTH ADJUST : SPACER or ONE TYPE • BEAD RANGE SPEC : 13" ~ 24" • SHOULER FLANGE SECTION : 12 PCS • TURN UP (BLADDER) • SURFACE PLATING : HARD CHROME or SAND BLASTING AFTER HARD CHROME |
DESIGN-B (Radial Expansion) |
 |
| DESIGN-C (Plate type) |
Carcass Drum
| DESIGN-A (Shoulder control type) • WIDTH ADJUST : SPACER or ONE TYPE • BEAD RANGE SPEC : 13" ~ 24" • SHOULER FLANGE SECTION : 12 PCS |
• TURN UP (BLADDER) • SURFACE PLATING : HARD CHROME or SAND BLASTING AFTER HARD CHROME |
Belt Drum
| DESIGN-A (Linear motion system) • DIA. RANGE SPEC(BASIC) : Ø450 ~ Ø815 • SEGMENT WIDTH : W305 ~ W450 • SURFACE PLATING : SAND BLASTING • SECTION : 18PCS |
DESIGN-B (Link system / Air actuator) |
| DESIGN-C (Finger type / Air cylinder) |

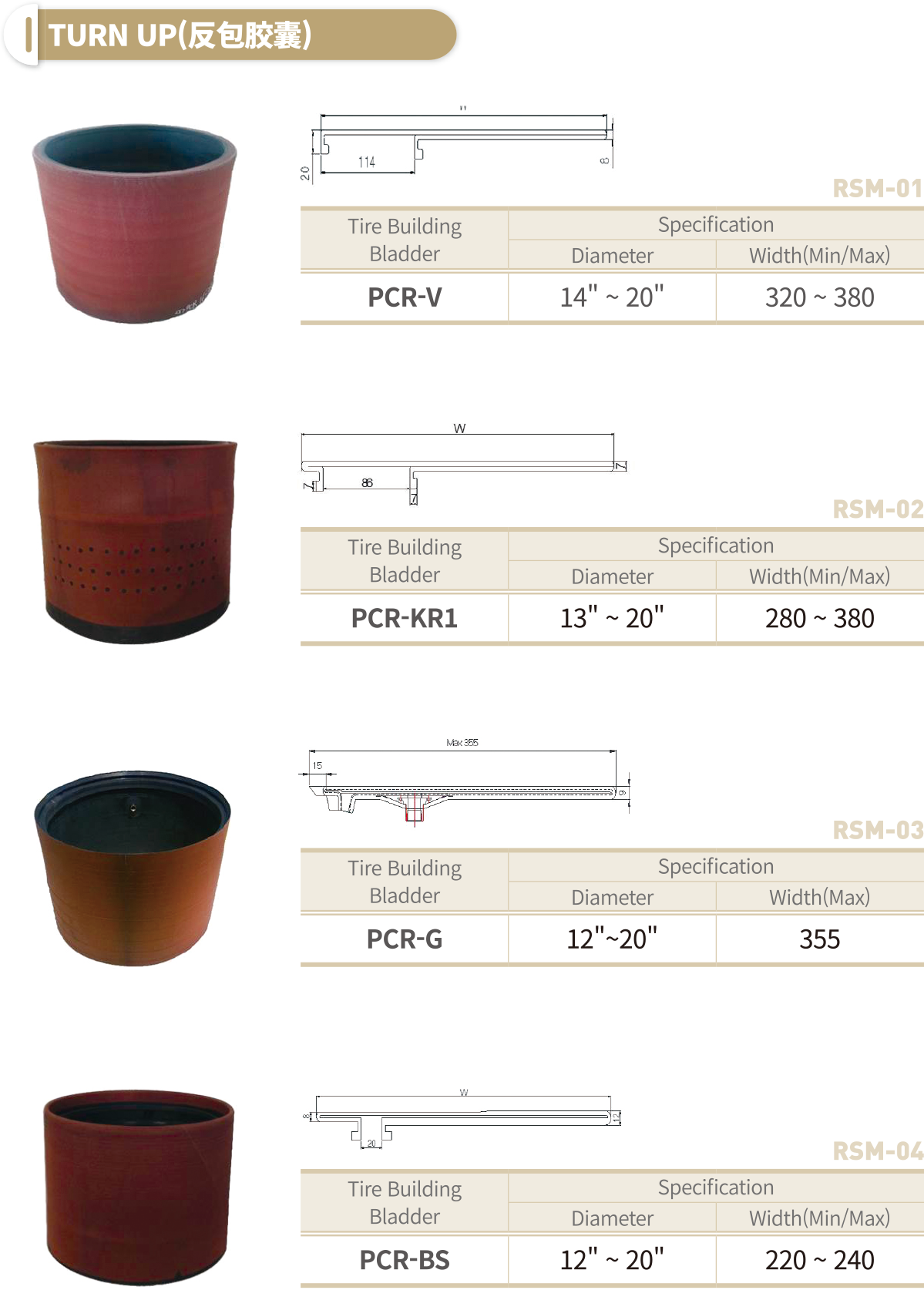

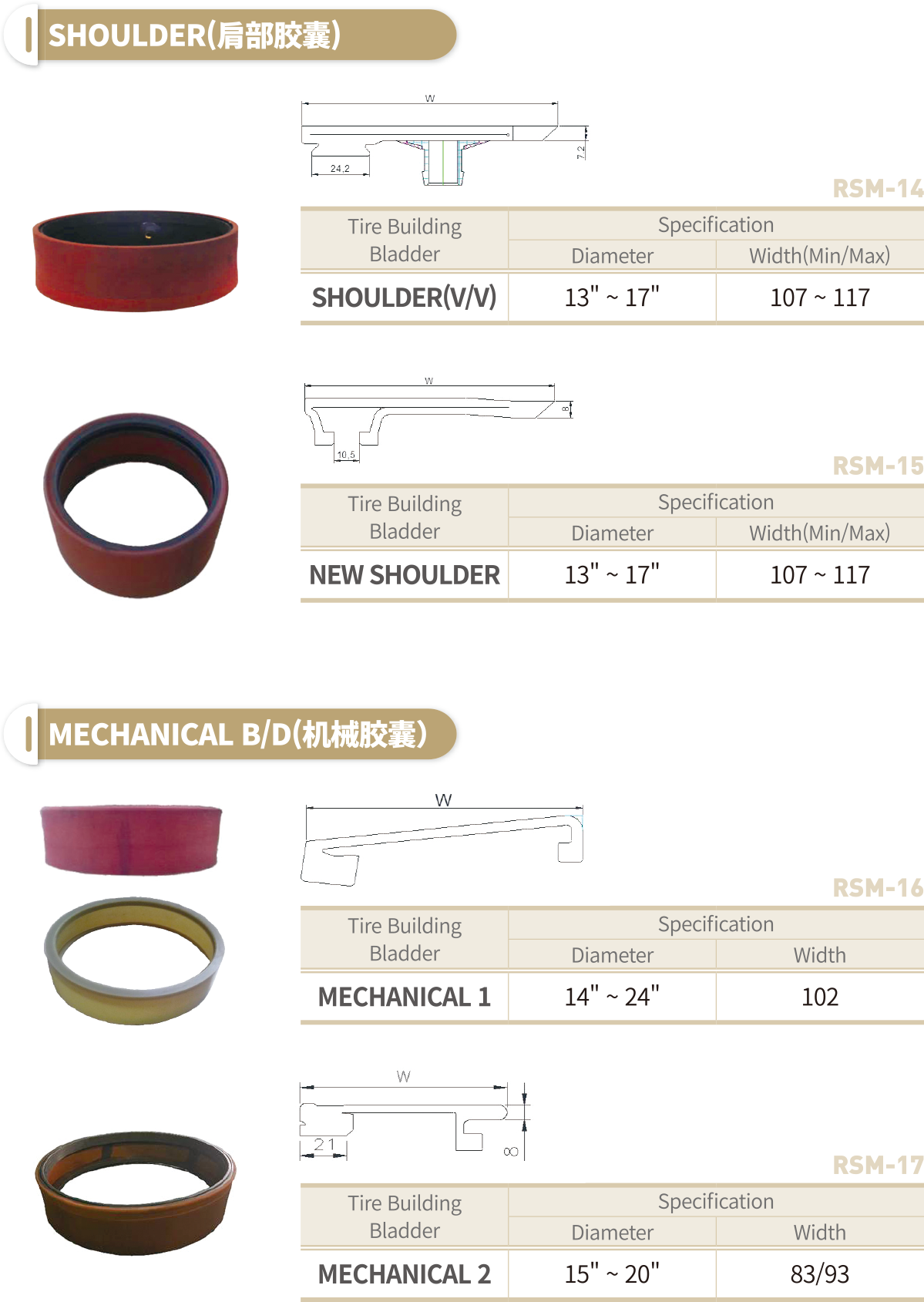

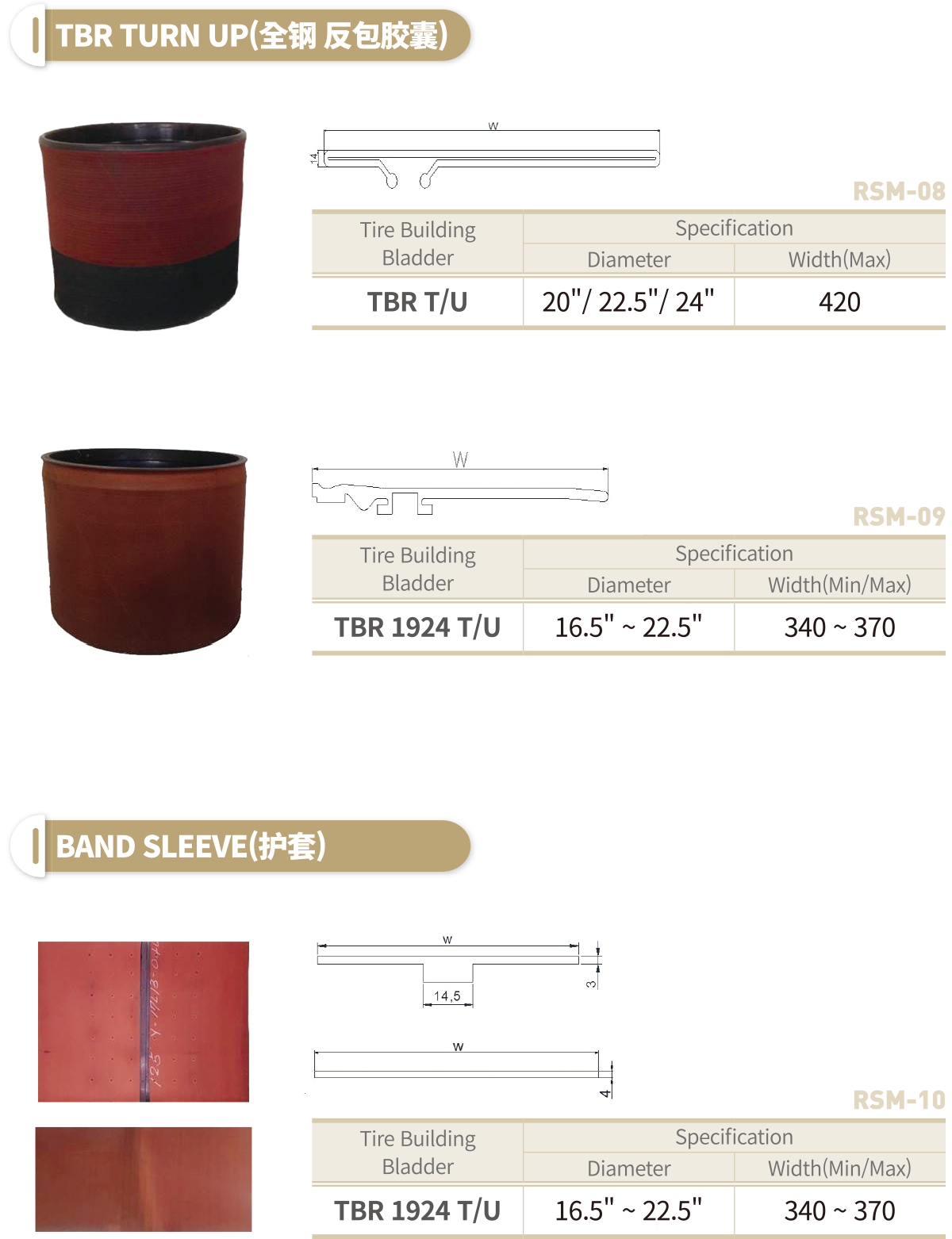

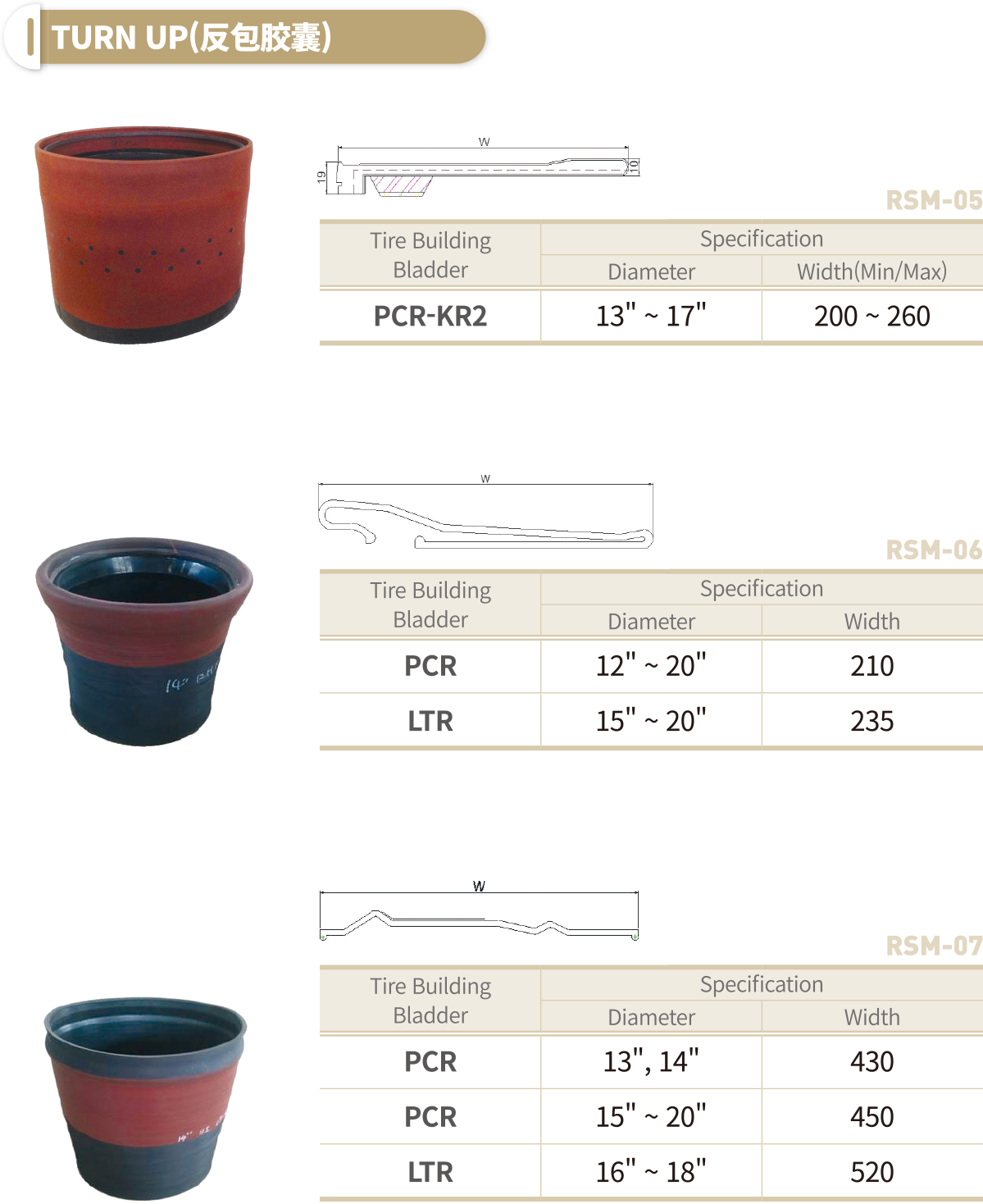

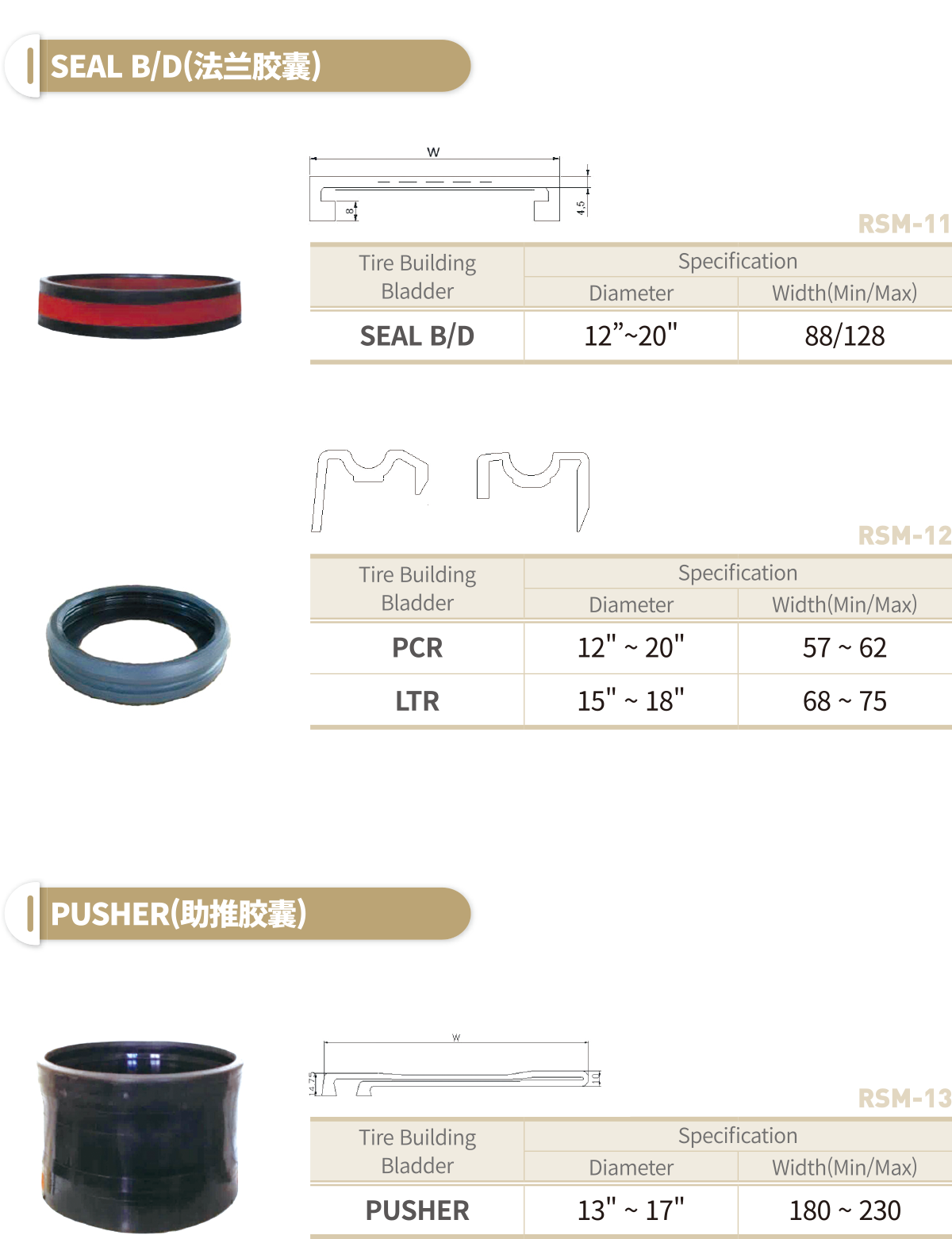

Bladder
Air Bag
• Lifting works for Industrial machinery
• For rescue

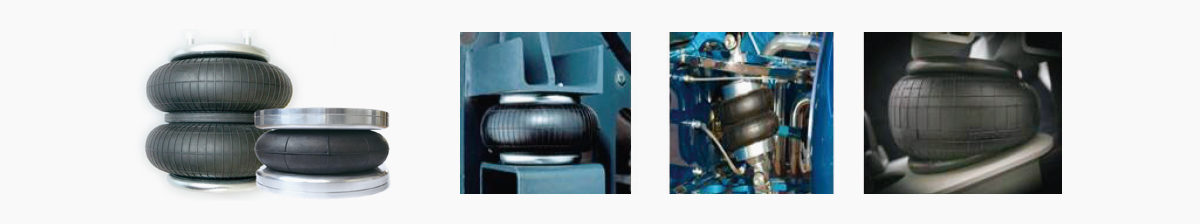

Air Spring
•Vibration isolation
•Air damper
•Air suspension for bus and truck
Tire Inspection M/C
 |
 |
 |
 |
| PC TIRE TOTAL STIFFNESS TEST UNIT | PC TIRE S/W STIFFNESS TEST UNIT | PC TIRE PRESSURE TEST UNIT | TIRE FLATBED TEST UNIT |
Compound-1
| Items | Product | Chemical Composition / Polymer Binder | Cont.(%) | Packing |
| Bonding Agents | RESO-80 | resorcinol donor / SBR | 80 | 20Kg box |
| HEXA-80 | HEXA-80 Hexamethyiene tetramine /SBR 80 20kg box | 80 | 20Kg box | |
| HMMM-50 | N,N,N',N',N'',N''-Hexakis(methoxymethyl)- 1,3,5-triazine-2,4,6-triamine / EPM | 50 | 20Kg box | |
| Coupling Agents | SIL-69/50 | bis(3-tri-ethoxysilylpropyl)-tetrasulphide / EPM | 50 | 20Kg box(1Kg x20EA) |
| Curing Agents | IS(OT-20) | Insoluble sulfur | 100 | 25Kg bag |
| S-80 | sulfur / EPM | 80 | 25Kg bag | |
| S-80ST | sulfur / EPM | 80 | SHEET TYPE | |
| TST-707 | 2,4,6-trimercapto-s-triazine / ACM, ECO | 60 | 20Kg box | |
| IS-70/90 | Insoluble sulfur / EPM | 70/90 | 25Kg box | |
| Cross-linking Activator for Peroxide | TAC-50 | triallyl cyanurate / Silica | 50 | 20Kg box |
| TAIC-70 | triallyl isocyanurate / Silica | 70 | 20Kg box | |
| TRIM-60 | trimethylolpropane trimethacrylate / Silica | 60 | 20Kg box | |
| Accelerators | M(MBT)-75/80 | 2-mercaptobenzothiazole / EPM | 75/80 | 25kg bag |
| DM(MBTS)-70/75 | dibenzothiazyl disulphide / EPM | 70/75 | 25kg bag | |
| DM-70ST | dibenzothiazyl disulphide / EPM | 70 | SHEET TYPE | |
| CZ(CBS)-70/75 | N-cyclohexyl-2-benzothiazolesulfenamide / EPM,NBR | 70/75 | 25Kg bag 20Kg box |
|
| NS-75 | N-tert-butyl 2-benzothiazolesulfenamide / EPM | 75 | 25Kg bag | |
| BZ(ZDBC)-75 | zinc-dibutyldithiocarbamate / EPM | 75 | 25Kg bag |
Compound-2
| Items | Product | Chemical Composition / Polymer Binder | Cont.(%) | Packing |
| Accelerators | EZ(ZDEC)-75 | zinc-diethyldithiocarbamate / EPM | 75 | 25Kg bag |
| PZ(ZDMC)-75 | zinc-dimethyldithiocarbamate / EPM | 75 | 25Kg bag | |
| TDEC-75 | telurium diethyldithiocarbamate / EPM | 75 | 20Kg box | |
| TBzTD-75 | Tetrabenzylthiuram disulfide / EPM | 75 | 25kg bag | |
| TT(TMTD)-70/75 | tetramethylthiuram disulfide / EPM, NBR | 70/75 | 20Kg box 25Kg bag |
|
| TT-70ST | tetramethylthiuram disulfide / EPM | 70 | SHEET TYPE | |
| TS(TMTM)-75 | tetramethylthiuram monosulfide / EPM | 75 | 25Kg bag | |
| DPTT(TRA)-75 | dipentamethylenethiuram terasulfide / EPM | 75 | 25Kg bag | |
| Na22(ETU)-75 | ethylene thiourea / EPM | 75 | 25Kg bag | |
| Retarders | PBMR-75 | N,N'-m-Phenylene bismaleimide / EPM | 75 | 25Kg bag |
| Others | CTP(PVI)-50/80 | N-cyclohexylthio phthalimide / EPM | 50/80 | 25Kg bag |
| ZnO-180 | zinc oxide / EPM | 80 | 25Kg bag | |
| AC(1000)-75 | azodicabonamide / EPM | 75 | 25Kg bag | |
| Tio2(A/R)-75 | titnium dioxide / EPM | 75 | 25Kg bag |
